FINGER JOINT CUTTER 250*3.8*70*6T CXA Series

Diameter:250mm
Body thickness:3.8mm
Inner bore:70mm
Teeth number:6
Finger jointing length:12mm

零售价
0.0
Yuan
市场价
0.0
Yuan
浏览量:
1000
产品编号
xfcp3004
数量
-
+
库存:
所属分类
BACK TO LIST
1
DETAILS
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

Finger Joint Cutter Parameter

Diameter:250mm
Body thickness:3.8mm
Inner bore:70mm
Teeth number:6
Finger jointing length:12mm

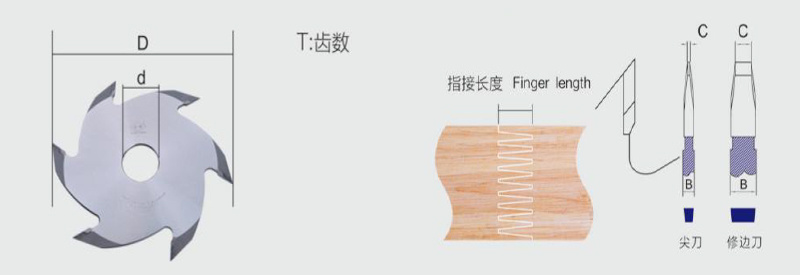

Schematically Described

Finger Joint Cutter Description

1. Body steel: 75Cr1
2. Ceratizit tips from Luxemburg
3. Used on finger-jointers and spindle shaper
4. Combination use by adding or reducing extra cutters
5. Wide tip, good self-lock, used for manufacturing furniture and laminated lumber
6.Specialized in hard wood processing

Similar more specifications

Diameter Thickness Bore Teeth Length (mm)
250 3.8 50/70 6 12
250 4.0 50/70 6 12
